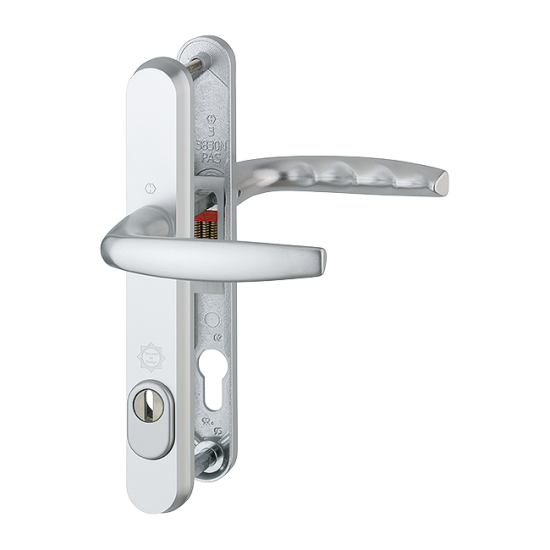

HOPPE Alanta Security Handle Set

Atlanta

HOPPE aluminium security handle set on narrow backplate with cylinder cover for profile doors

View further versions of the series

Productline Model: 1530/3259N-ZA/3830N

Model: 1530/3259N-ZA/3830N

Product Description

HOPPE aluminium security handle set on narrow backplate with cylinder cover for profile doors:

Tested to DIN EN 1906: 26-0040A

Bearing: loose door handles, spring cassettes, maintenance-free slide bearing

Connection: HOPPE Quick-Fit connection with HOPPE solid spindle (spindle - receiver components)

Cylinder cover: hardened steel, for cylinder projection 10-18 mm

Backplates: supporting lugs

Fixing: visible inside, bolt-through, M6 thread screw and M10 thread screw with M6 thread inside

Product type

Security handle sets

Version

Set on narrow backplate (3259N-ZA/3830N)

Grade 2

Security grade TS007

Spindle size 8 mm

Commodity Class aluminium

(Key)Hole size Euro profile cylinder

Key hole distance 92 mm

Spindle size 8 mm

Door thickness 44 mm
